Your trust in our Spherical Head Lifting System drives us to deliver high-quality, certified lifting technology. This manual will guide you through proper usage, inspections, and maintenance practices designed to enhance safety and extend product life.

About The System

What is a Spherical Head Lifting System?

A Spherical Head Lifting System is a specially engineered lifting solution designed for the safe handling, transportation, and installation of precast concrete and heavy structural elements. The system uses a spherical-shaped anchor head embedded in concrete, which allows a secure and positive connection with the lifting clutch. This design ensures controlled load transfer, minimizes stress concentration, and provides enhanced safety during lifting operations.

The spherical geometry enables multi-directional lifting, making the system suitable for both vertical and angled lifts, even in complex site conditions.

System Components

The Spherical Head Lifting System consists of precision-engineered components that work together to ensure safe and efficient lifting:

1. Spherical Head Anchor
Embedded into the concrete element during casting
Transfers load directly from the concrete to the lifting deviceDesigned for high load-bearing capacityAvailable in multiple sizes and load ratings.

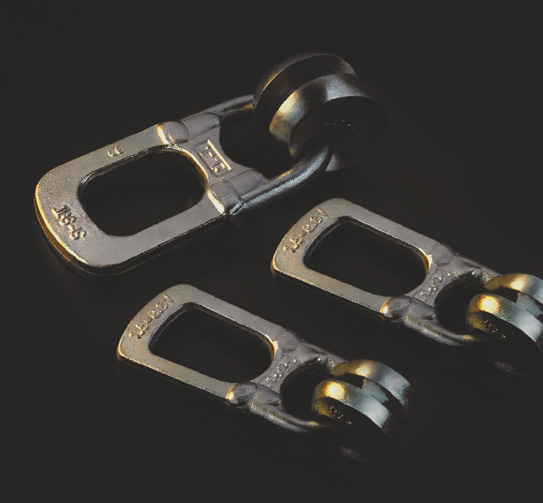

2. Lifting Link / Lifting Clutch
Connects securely to the spherical head anchorEnsures positive locking during liftingDesigned to prevent accidental disengagementSuitable for vertical and inclined lifting angles.

3. Recess Former
Creates a recess in the concrete surface for anchor placement
Ensures correct anchor positioning
Allows easy access for clutch engagement
Can be removed after casting
